Introduction

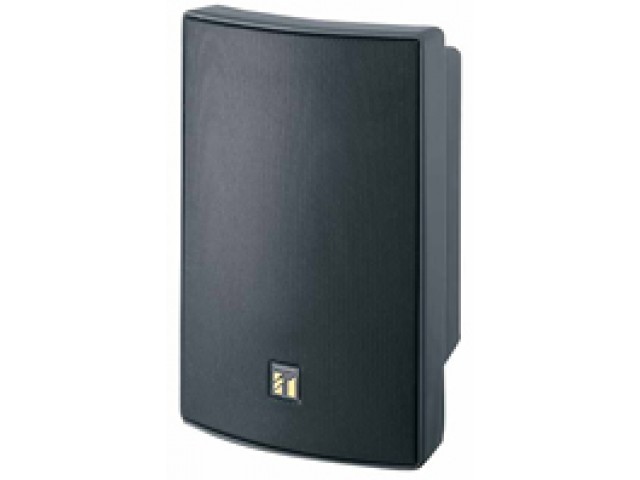

The BS-1030W is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030W can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.

Specification
Enclosure:     2-way bass-reflex type
Rated Input:     30 W
Rated Impedance:     8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level:     90 dB (1 W, 1 m)
Frequency Response:     80 Hz - 20 kHz
Speaker Component:     12 cm cone-type + dome-type
Speaker Cord:     2-core cabtyre cord with diameter of 6 mm
Operating Temperature:     -10 ℃ to +50 ℃
Water Protection:     IPX4 (can be installed vertically or horizontally.*)
Enclosure Finish:    ABS resin, white (RAL9010 PURE WHITE), paint
Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating
Bracket:     Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating
Dimension:     196 (W) × 290 (H) × 150 (D) mm (unit only)
Weight:     2.5 kg (unit only)
