With each radio microphone transmitter you will need a radio microphone transmitter (hand held, tie clip tra. This enables you to use two or more microphones at the same time. Should you only ever need to use one microphone at a time you can purchase one radio microphone receiver.
Overview

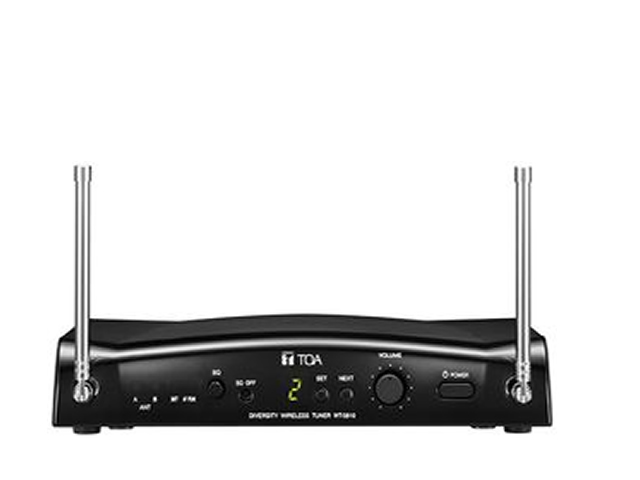

The WT-5810 Wireless Tuner is designed for use on the UHF band, and suitable for vocal or speech reinforcement applications.
It features a compounder circuit that minimizes the influence of ambient noise. 16 different operating frequencies ranging from 576 to 865 MHz. Optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature change.
Compact size and high reliability.
The WT-5810 Wireless Tuner is designed for use on the UHF band, and suitable for vocal or speech reinforcement applications.
It features a compounder circuit that minimizes the influence of ambient noise. 16 different operating frequencies ranging from 576 to 865 MHz. Optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature change.
Compact size and high reliability.
Features
- Phase Locked Loop (PLL) synthesis operation
- 16 selectable channel frequencies
- TOA space diversity technology
- Double super-heterodyne receiving system
- Auto mixing input function
- Squelch function (carrier, noise, tone)
- Usable frequencies scanning and vacant channel search function
- Compact portable design
- Compander circuitry for minimizing ambient noise
- Rod antenna × 2
- Balanced output (XLR connector) and phone jack output
- Low-battery indicator (wireless microphone's battery voltage becomes low)
PDF Datasheets
UHF radio microphone manual
